IS 10810 Part 61 Swedish chimney setup for vertical flame spread test on wires and cables
Swedish chimney test apparatus as per IS 10810 Part 61 for cable fire propagation testing
Laboratory Swedish chimney test equipment for flame propagation test of insulated cables
Cable fire resistance testing using Swedish chimney apparatus as per IS 10810-61 standard

Swedish Chimney

Swedish Chimney SC-261 is designed to test the fire performance of single vertical electric cables. Ideal for evaluating flame spread, heat resistance, and safety as per standard fire-testing conditions. Designed as per standard IS 10810 (Part 61).

Category:

Description

Specifications

  • Model: SC-261

  • Purpose: Conducting Flame Retardance Test on single cable samples as part of type testing of cables

  • Material of Chimney: Steel (Non Corrosive Type)

  • Thickness of Vertical Tube: 0.8 ± 0.2 mm

  • Vertical Tube Dia: 125 mm

  • Vertical Tube Length: 800 mm

  • No. of rectangular shape opening on tube: 6

  • Rectangular opening dimensions: 15 x 60 mm

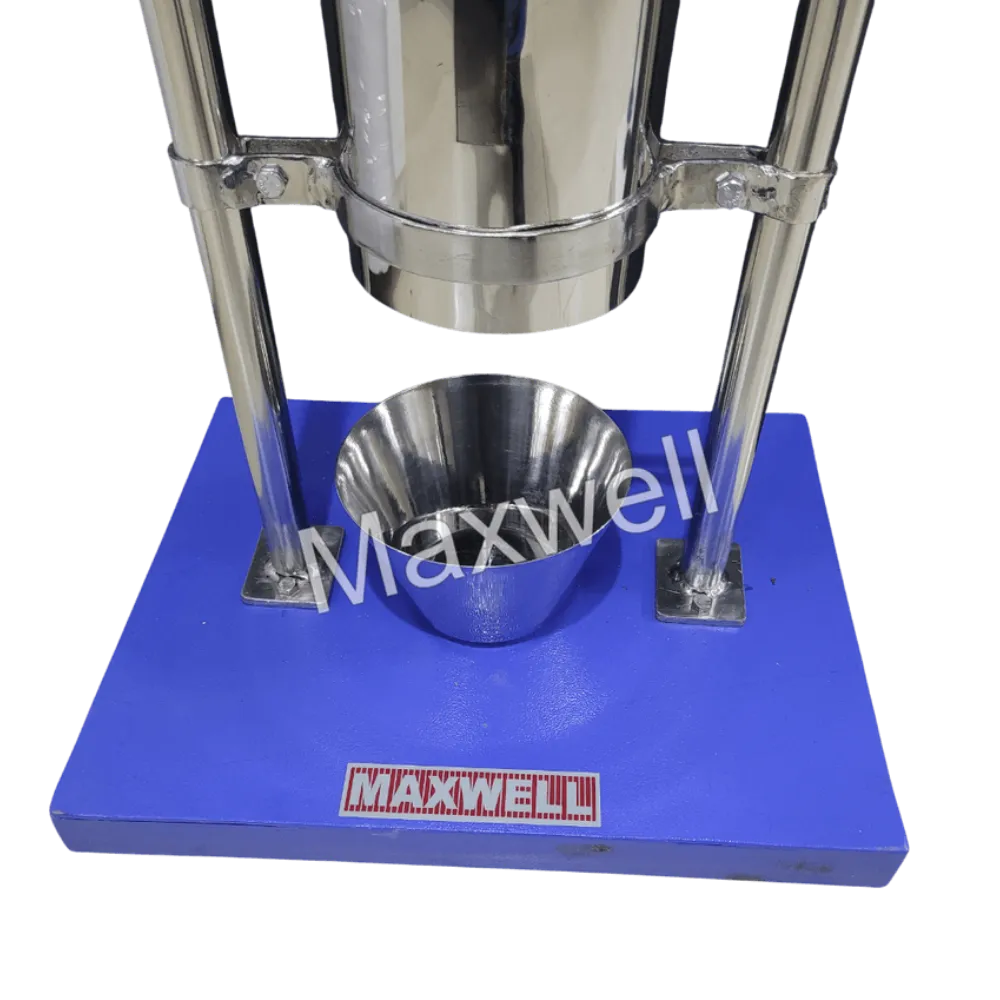

  • Material of conical Tray: Stainless Steel

  • Capacity of conical Tray: Volume of 1 litre of ignition fluid

  • Mass of tray: 160 ± 20 gm

  • Conical Tray Tray Top Side Dia. : 145 mm

  • Conical Tray Tray Bottom Side Dia. : 90 mm

  • Application: Electric cables, wiring systems, fire-resistant materials

  • Test Method: Controlled exposure to flame and heat

  • Performance Evaluation: Flame spread, thermal stress, combustion behavior

  • Use Cases: Cable manufacturers, electrical labs, fire-safety testing facilities

  • Relevant standards: IS 10810 (Part 61), SS-424-1475

Swedish Chimney – Vertical Cable Fire Test Apparatus for Flame Spread Evaluation

The Swedish Chimney is a fire-testing apparatus designed for evaluating the fire resistance and flame-spread behavior of single vertical electric cables as per standard IS 10810 (Part 61) and SS-424-1475. With a robust vertical tube length of 800 mm, this equipment replicates real-world fire exposure conditions to determine how cable materials perform under elevated temperatures and direct flame contact.

Built to support fire-safety compliance, the Swedish Chimney helps assess how cables withstand thermal stress, heat exposure, and the potential spread of flames. Its controlled test environment allows manufacturers and quality-control laboratories to evaluate combustion characteristics, ensuring cable systems meet essential fire-performance requirements.

Ideal for R&D, certification, and routine QA testing, the SC-261 provides reliable and repeatable results, making it an essential component in evaluating fire behavior of electrical cables and flue-related materials.

Key Features

  • Designed for accurate vertical cable fire-testing

  • Simulates chimney-like heat and flame conditions

  • Helps assess flame spread and ignition resistance

  • Sturdy, high-temperature resistant test chamber

  • Suitable for cable manufacturers, QA labs, and fire-testing facilities

  • Provides reliable, standard-based fire-performance evaluation
