Name: Digital Conductivity Meter (for Busbar &amp; Strip)
SKU: 3971

Digital Conductivity Meter (for Busbar & Strip)

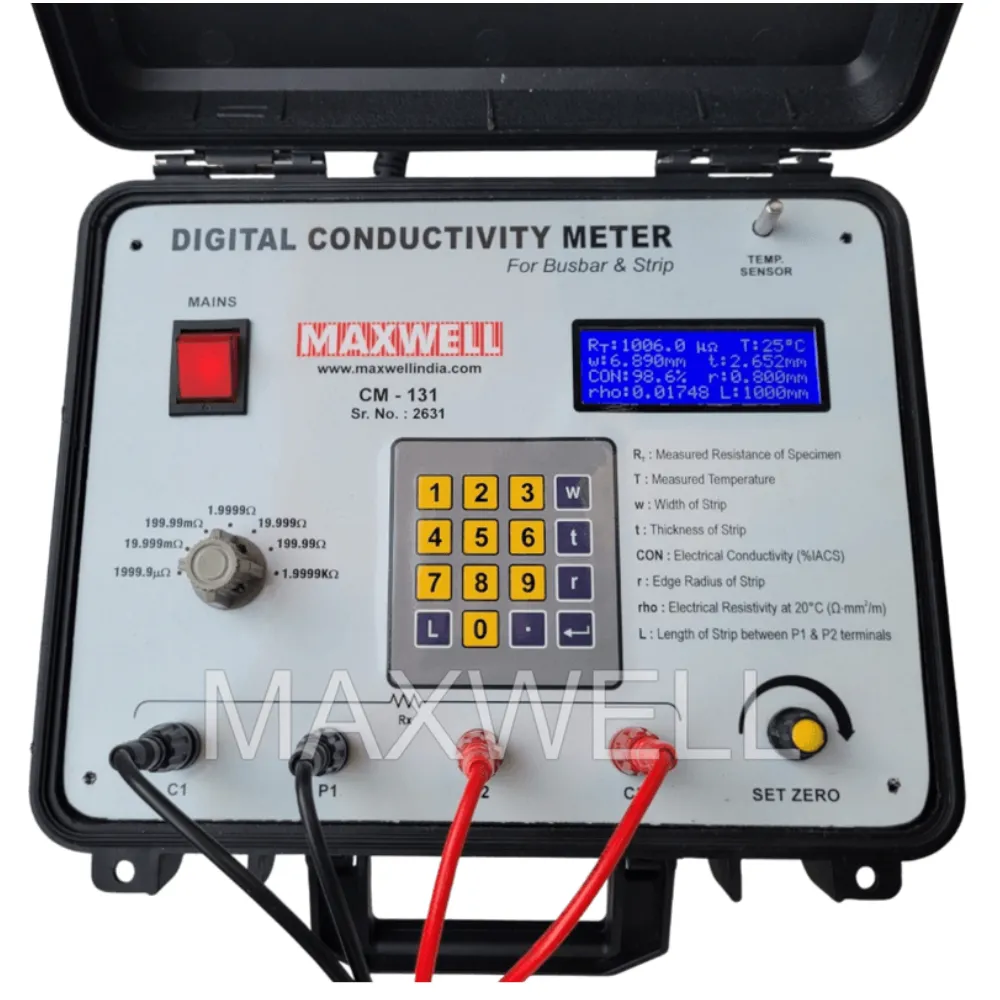

Digital Conductivity Meter CM-131 for busbar and strip measures low resistance from 1 µΩ to 2 kΩ with ±0.2% accuracy. Also known as CR meter, features RT, resistivity, conductivity and temperature. Diameter & Length can be input via keypad available. It offers 2A test current, and a 4-terminal Kelvin arrangement for highly precise testing.

Product successfully added to the Quote List

Description

🔸 Specifications:

Model: CM-131
Product Name: Digital Conductivity Meter for Busbar & Strip
Accuracy: ±0.2% of reading, ±0.05% of range
Least Count: 0.1 Micro ohm
Display: Digital LCD Screen with Backlight
Instrument Type: Portable Bench / Field Model
Test Current: Up to 2A for low-resistance ranges (19.99 mΩ & below) & Approx. 0.1A for higher ranges
Measurement Method: 4-Terminal Kelvin Method
Control Interface: Keypad with functional buttons
Input Terminals: C1, P1, P2, C2 terminal arrangement
Temperature Feature: Inbuilt temperature sensor with real-time display
Zero Adjustment: Set Zero control provided
Operation: Mains operated
Enclosure: Rugged industrial carry case with hinged lid
Portability: Integrated carrying handle
Panel Layout: Clearly labeled front control panel
Application Type: Laboratory & field conductivity/resistivity testing
Standards Compliance: IS 5484:1997, IS 5082:1998, IS 2067:1975, IS 694:2010, IS 1554:1988, IS 14255:1995, IS 8130:2013, IS 613:2000

🔸 Product Overview:

The Digital Conductivity Meter is a precision testing instrument designed for accurate measurement of electrical conductivity/resistivity in laboratory and industrial environments. Built in a rugged portable enclosure, the instrument is suitable for both bench-top operation and field applications where durability and reliability are essential.

The unit features a clear backlit LCD display for easy reading of measurement values along with a user-friendly keypad interface for smooth operation. The multi-terminal input arrangement ensures stable and precise conductivity/resistivity measurements while minimizing contact errors.

Its protective hinged carry case enhances safety during transportation and storage, making it ideal for testing professionals requiring dependable performance in demanding working conditions.
