Description
- Model: HO-163
- Inner Chamber Size: 18 inch x 18 inch x 18 inch (approx. 45cm x 45cm x 45cm)
- Inner Chamber Material: Mirror finish SS 304 or equivalent
- Outer Chamber: Metallic sheet duly powder coated
- Least Count: 0.1°C
- Accuracy: ±1°C
- Insulation Layer: High quality glass wool/blanket
- Heater material: Stainless Steel
- Temperature Sensor: PT100 or better
- Capacity: 95 L
- Shelf Stack: 2 shelves provided with the chamber
- Timer: Inbuilt
- Temperature Range: Room Temperature to 250°C
- Temperature Control: PID Controller with Digital Display
- Data Logging: Available in custom made model with extra cost
- Applications: Drying, curing, baking, heat treatment
- Usage Areas: Industrial workshops, labs, QC departments

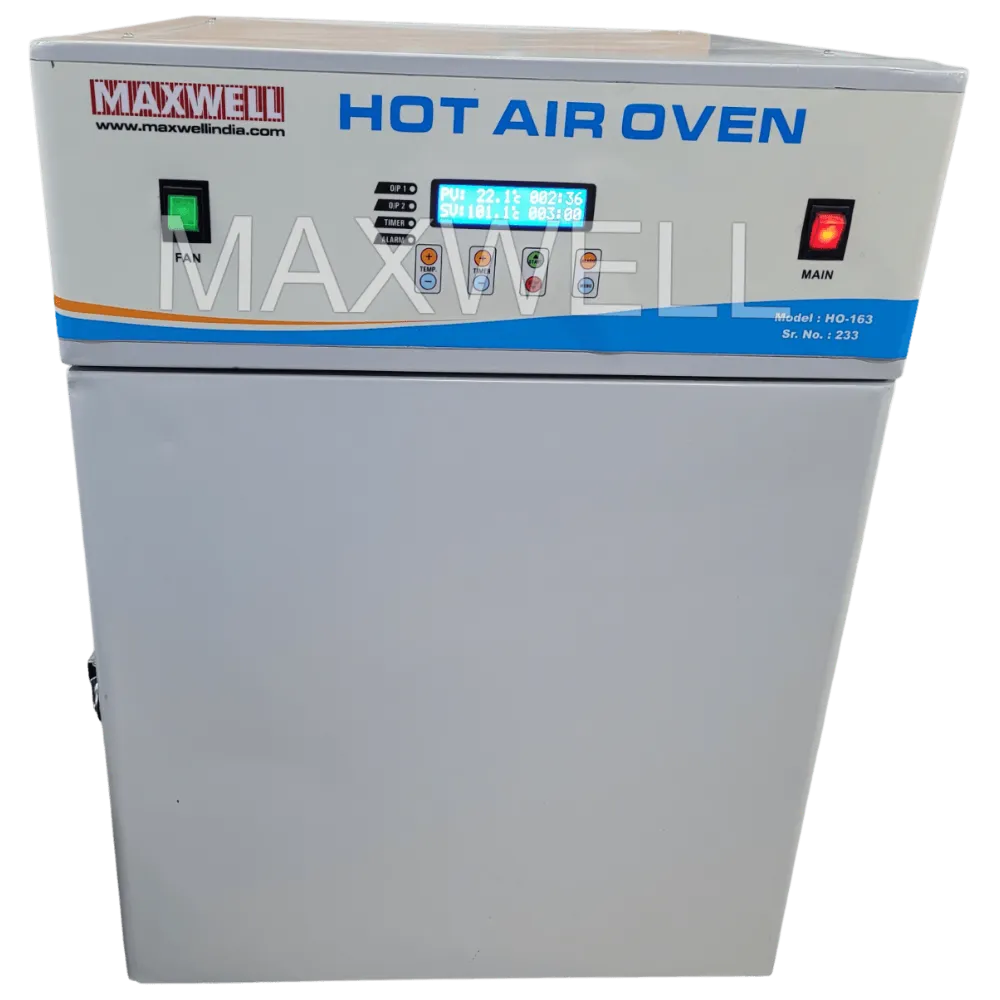

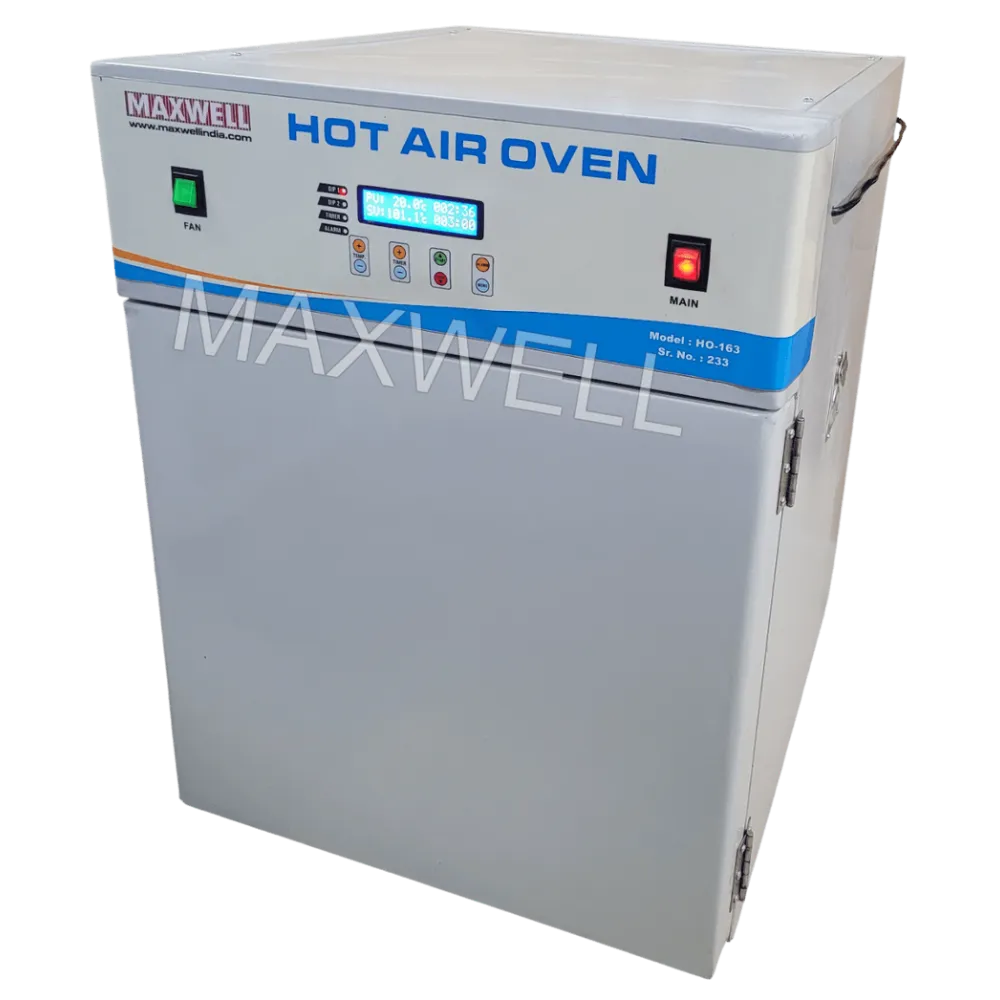

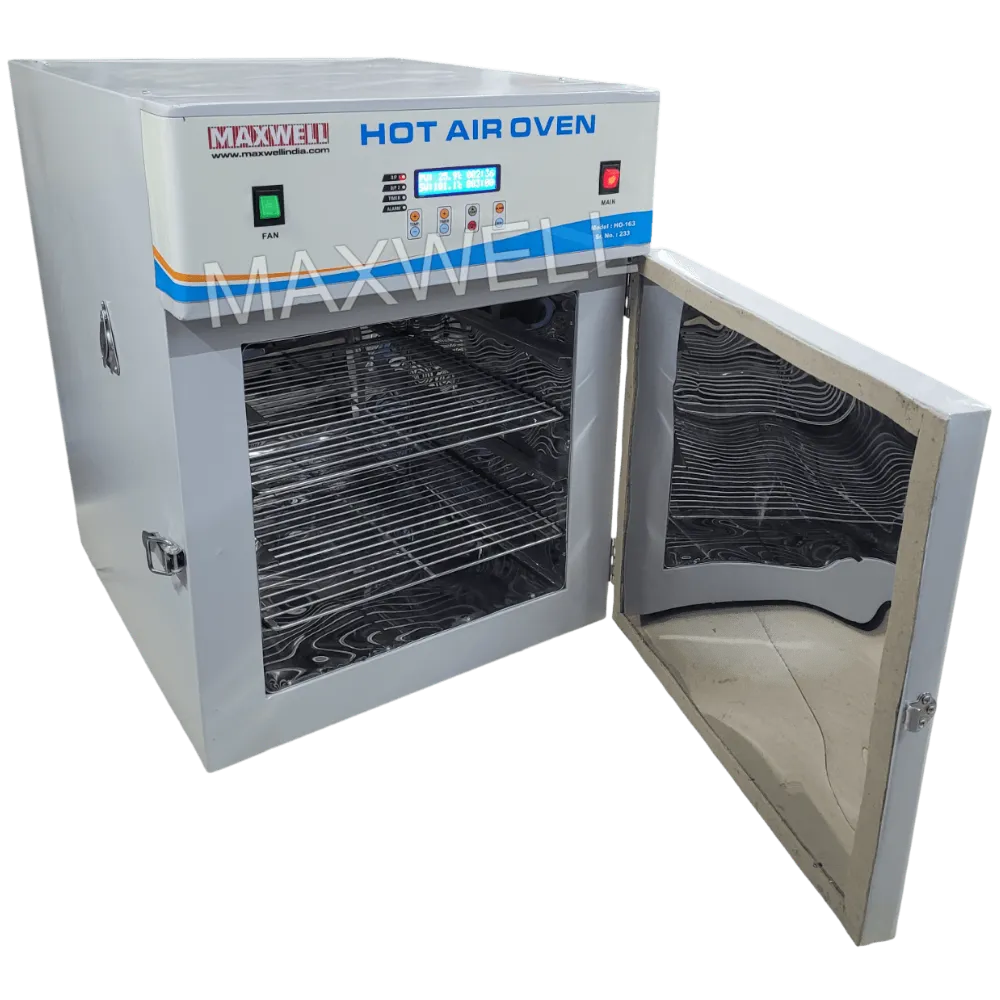

Industrial Hot Air Oven – High-Precision Drying & Curing Solution for Industrial and Laboratory Use
The Industrial Hot Air Oven (18 inch x 18 inch x 18 inch) is engineered for efficient drying, baking, and heat-treatment applications across industrial workshops and laboratories. Built with a durable GI inner chamber, the oven ensures uniform heating and long-term reliability, making it ideal for repetitive process cycles.
This hot air oven offers a maximum temperature of 250°C, controlled through a PID-based temperature control system for accurate and stable heating performance. The digital display provides easy monitoring, ensuring consistent temperature maintenance and timer option throughout the process.
Designed for convenience and efficiency, this oven can be used for component drying, varnish curing, material testing, and other heat-based processes. For advanced monitoring, data logging is available as an optional upgrade, allowing users to record and analyse temperature cycles for quality assurance.
With robust insulation, the oven minimizes heat loss, improves energy efficiency, and maintains temperature uniformity—perfect for workshops, electronic repair units, laboratories, and R&D environments.
Key Features
-
Durable GI Inner Chamber for strong heat resistance and long service life
-
PID Temperature Control ensures accurate and stable heating up to 250°C
-
Uniform Air Circulation for consistent drying and curing
-
Optional Data Logging for process tracking and quality control
-
18 inch x 18 inch x 18 inch Size ideal for heat-treatment applications
-
Energy-efficient insulated body for reduced heat loss
-
Suitable for industrial, laboratory, electrical, and R&D usage
Applications
-
Drying of electrical components
-
Varnish curing for motors and coils
-
Material and component pre-heating
-
Laboratory sample drying
-
Heat treatment and conditioning
- Cable Testing Labs
-
Electronics and PCB drying
-
QC and R&D thermal processes
