Conditioning Chamber Manufacturer

Description

Specifications

Product Name: Conditioning Chamber
Model: CC-361
Temperature Range: -20°C to +50°C
Temperature Accuracy: ±1°C
Temperature Control: Digital temperature indicator cum controller
Humidity Control Range: 50% to 90% RH (adjustable)
Humidity Accuracy: ±3%
Humidity Control System: Integrated humidity control unit
Application: Climatic testing, conditioning of test samples, deep freezer use
Operation Mode: Automatic digital control
Construction: Heavy-duty insulated chamber body
Strength: High structural durability for long-term use
Efficiency: High-performance cooling and humidity control systems
Power Supply: 220 V AC, 50 Hz

Product Overview

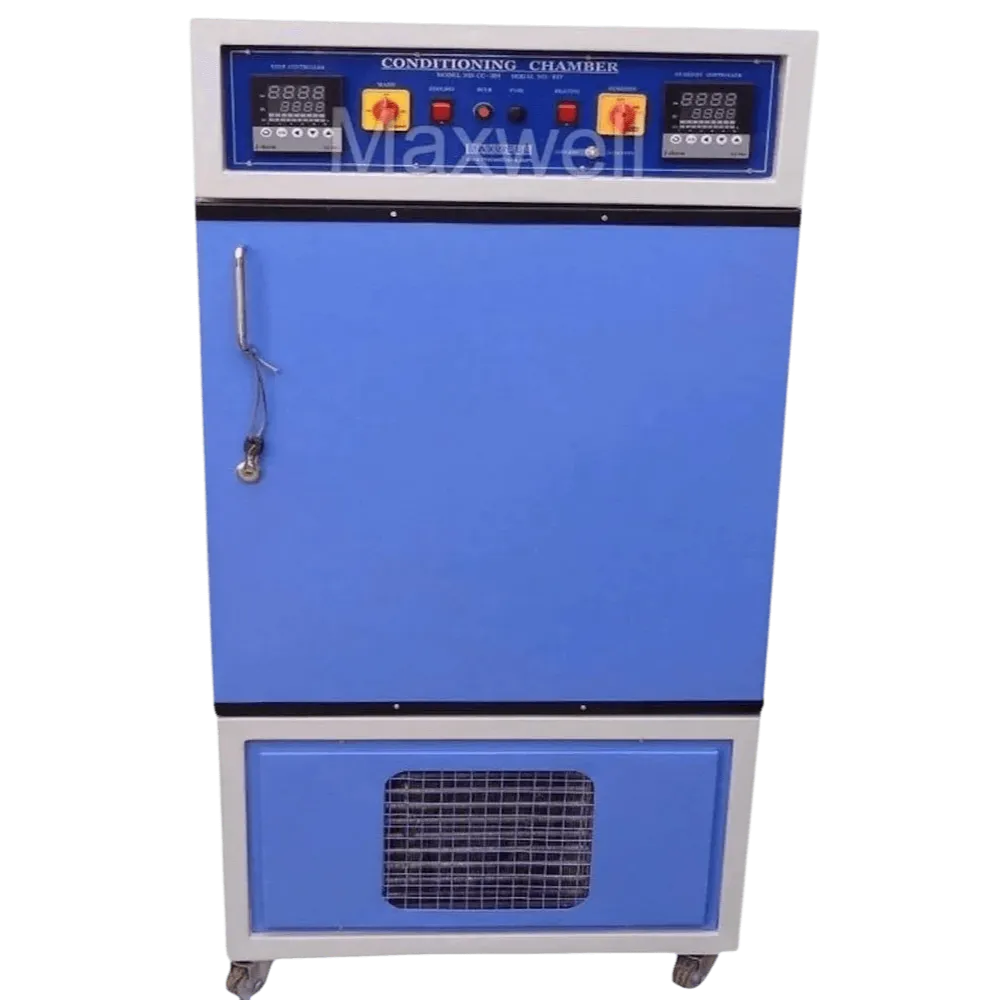

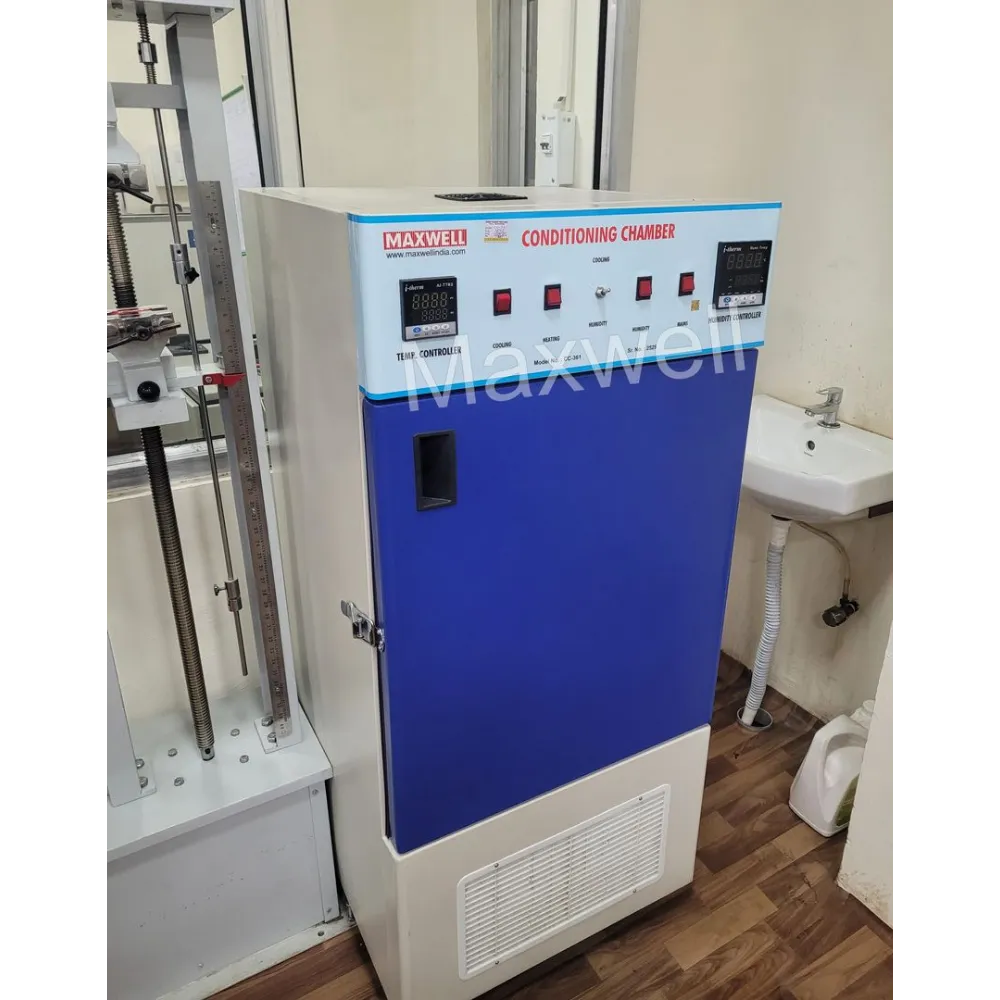

The Conditioning Chamber (Model CC-361) is a precision climatic testing cabinet designed to create controlled temperature and humidity environments for conditioning and evaluating materials, components, and products prior to testing. It provides a reliable temperature range of -20°C to +50°C with ±1°C accuracy, along with adjustable humidity control from 50% to 90% RH with ±3% accuracy.

Equipped with a digital temperature indicator and controller, the system offers stable environmental regulation and easy operation. The humidity control function enables simulation of varying atmospheric conditions for accelerated aging tests, moisture sensitivity evaluation, and product conditioning.

Due to its wide temperature capability, the chamber is often used as a deep freezer for low-temperature applications. However, for optimum performance and safety, it is recommended to use separate chambers for low temperature and humidity testing, as combining both functions is primarily a cost-economic design choice.

Built with robust insulation and rugged structural components, the CC-361 ensures high efficiency, strength, and unmatched operational reliability, making it suitable for continuous laboratory and industrial usage.
