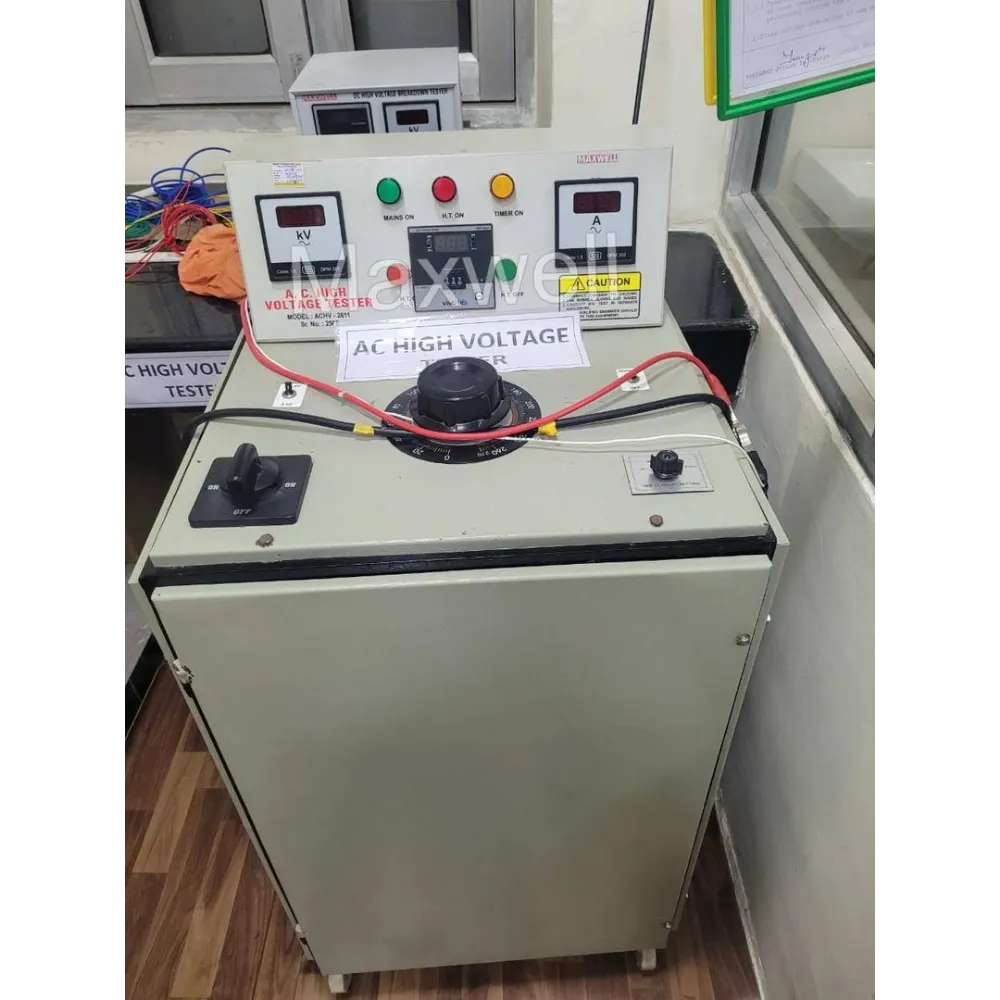

AC High Voltage Breakdown Tester

Description

Specifications

• Product Name: AC High Voltage Tester

• Model: ACHV-2611

• Output Voltage: 5 kV / 10 kV AC

• Power Capacity: 10 kVA

• Input Current: 50 Amps

• Measurement Display: 3 Digital Meters (Voltage, Leakage Current & Input Current)

• Leakage Current Measurement: Built-in digital leakage current meter

• Timer: In-built timer for accurate test duration control

• Transformer: Air-cooled high voltage transformer

• Test Standard: Designed as per BIS 694

• Voltage Control: Manual dimmer knob

• Operation Mode: Bench-top / floor standing laboratory unit

• Application Industry: Cable manufacturing and insulation testing labs

• Power Supply: 220 V AC, 50 Hz

• Construction: Heavy-duty metal enclosure for safety and durability

Product Overview

The AC High Voltage Tester – Model ACHV-2611 is a high-capacity dielectric strength testing system developed for accurate assessment of insulation integrity in cables, wires, and electrical components. With an output capability of 5–10 kV AC at 10 kVA power rating, the system is suitable for high-duty industrial testing and conforms to BIS 694 standards widely followed in the cable manufacturing sector.

The instrument is equipped with three built-in digital meters for continuous monitoring of applied voltage (kV), leakage current (mA), and test duration (timer). Inclusion of a dedicated leakage current meter ensures precise detection of insulation breakdown behavior — a feature often missing in conventional testers — offering enhanced diagnostic control.

An air-cooled high-voltage transformer ensures stable long-term operation with minimal thermal stress. Output voltage is smoothly controlled through a manual dimmer system for safe and gradual ramp-up.

Key Features & Benefits

• High-capacity output: 5/10 kV AC with 10 kVA rating

• Triple digital display: Voltage, leakage current, and timer

• Built-in leakage current monitoring for enhanced safety

• In-built timer for controlled test durations

• Air-cooled HV transformer for stable continuous operation

• Manual and optional automatic voltage control

• Designed in accordance with BIS 694 cable testing standards

• Rugged metal enclosure for safe industrial usage

Applications

• Dielectric strength testing of power and control cables

• Insulation integrity verification of wires and electrical components

• Cable manufacturing quality assurance

• Electrical testing laboratories and R&D facilities

• BIS compliance testing environments
