Half Wave Full Wave & Bridge Rectifier Appratus

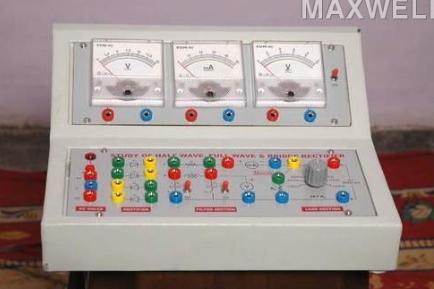

Half Wave/Full Wave & Bridge Rectifier Apparatus with 3 Meters
You can also study Ripple Factor
Objective: To study Efficiency & Ripple factor in case of Half wave, Full
wave & Bridge rectifier on application of load & filters.
Features: Instrument comprises of AC Power Supply, 3 meters to measure
Output Voltage,Output Current & ripple factor on electronic AC Voltmeter ,
4 PN Junction Diodes, Filter Circuit kit, load Resistances selectable
using bandswitch & all important connections points at 4mm Sockets.
Optional Acc .: Digital AC millivoltmeter.
