Description

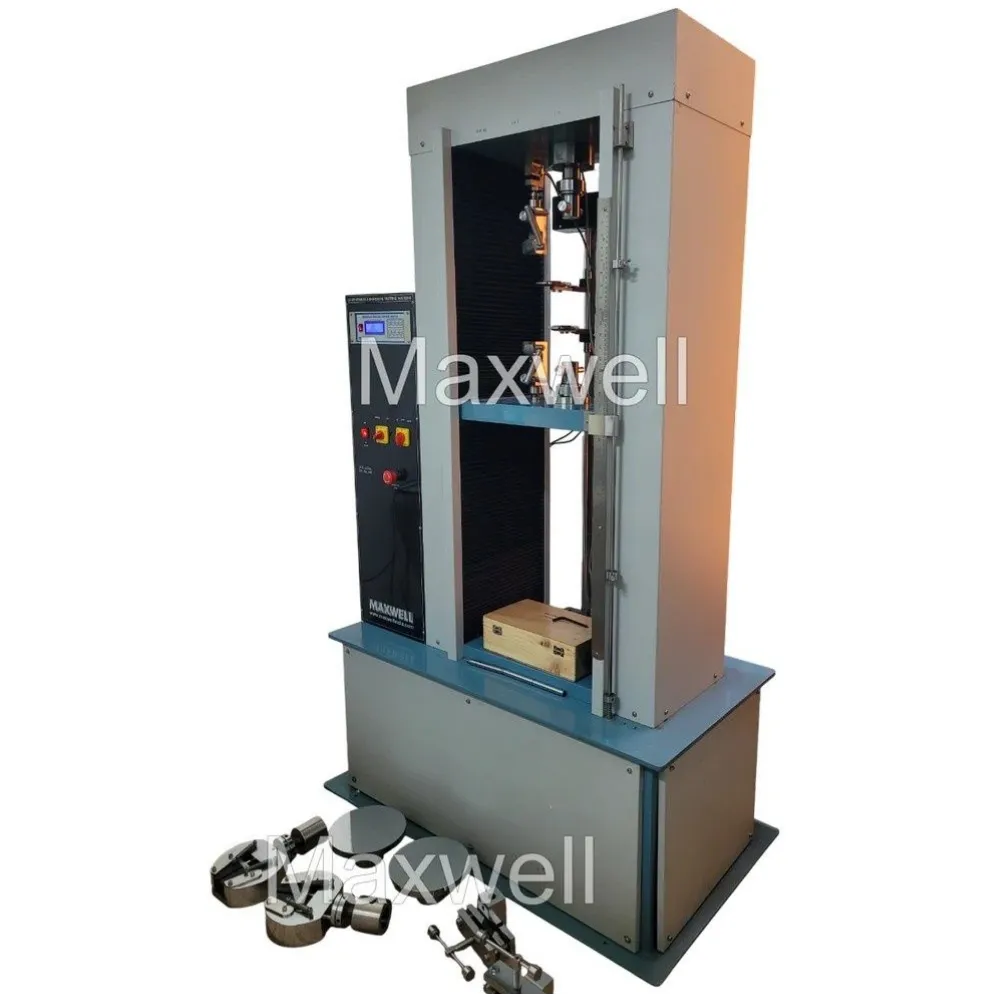

Computerized Universal Testing Machine (UTM) – Complete System
Our Computerized Universal Testing Machine is a versatile and high-precision system designed for accurate tensile and compression testing of a wide range of materials including metals, plastics, and composites. The system is equipped with multiple interchangeable load cells and dual extensometers for comprehensive mechanical property evaluation.
Key Features:
✅ Multiple Load Cell Options:
- 250 kg Load Cell – Ideal for small samples and low-load precision testing
- 1,000 kg Load Cell – Suitable for medium-strength materials and general testing
- 10,000 kg Load Cell – For high-capacity testing of large and strong components
✅ Extensometer Options:
- Long Gauge Extensometer – For materials with higher elongation like ductile metals and plastics
- Short Gauge Extensometer – Specially designed for testing metals with minimal elongation
✅ Test Capabilities:
- Tensile Testing – Measure yield strength, ultimate tensile strength, elongation, and modulus
- Compression Testing – Determine compressive strength, deformation, and material behavior under load
✅ Computer Interface and Software:

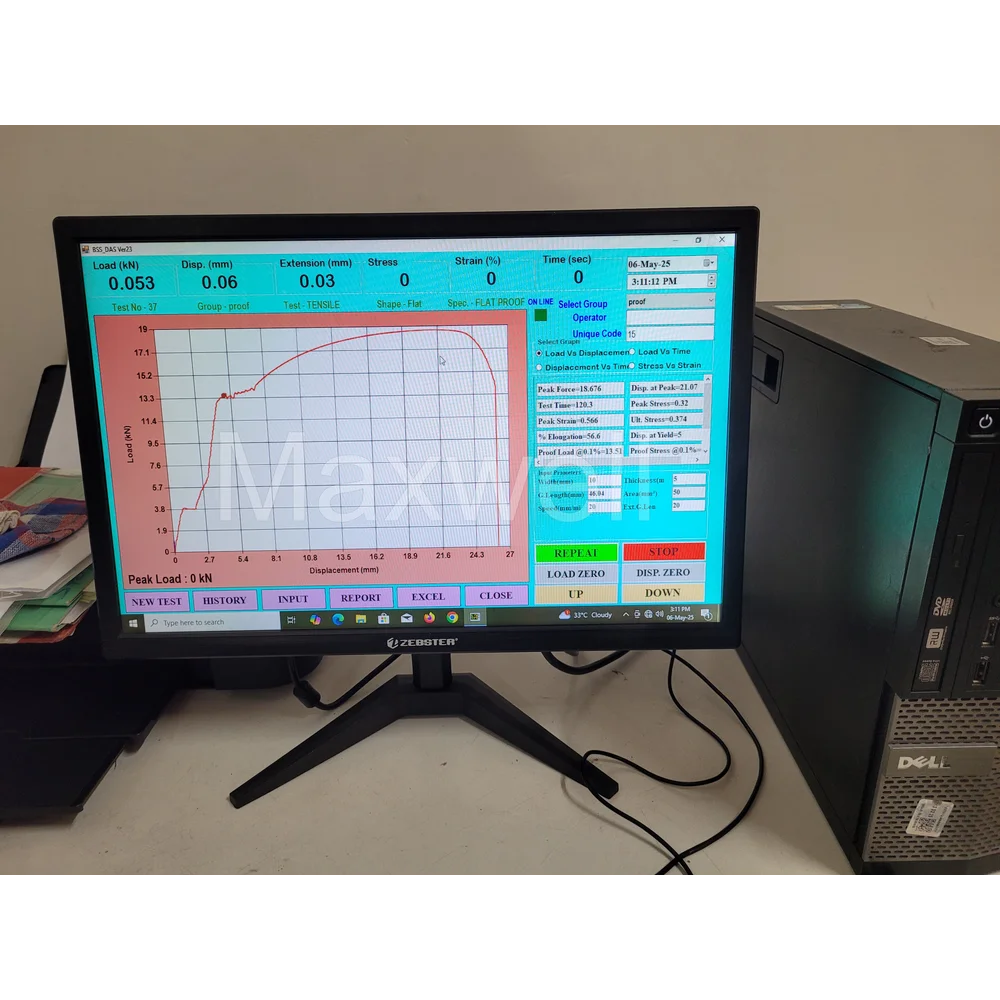

- Real-time graph plotting of stress vs. strain
- Automatic calculation and display of key parameters:
- Yield Strength
- Ultimate Tensile Strength
- Elongation (%)
- Modulus of Elasticity
- Load and Displacement
- Compression Yield and Fracture Points
- Data export to Excel or PDF for reporting and recordkeeping
- User-friendly software interface with graphical output and test result archiving

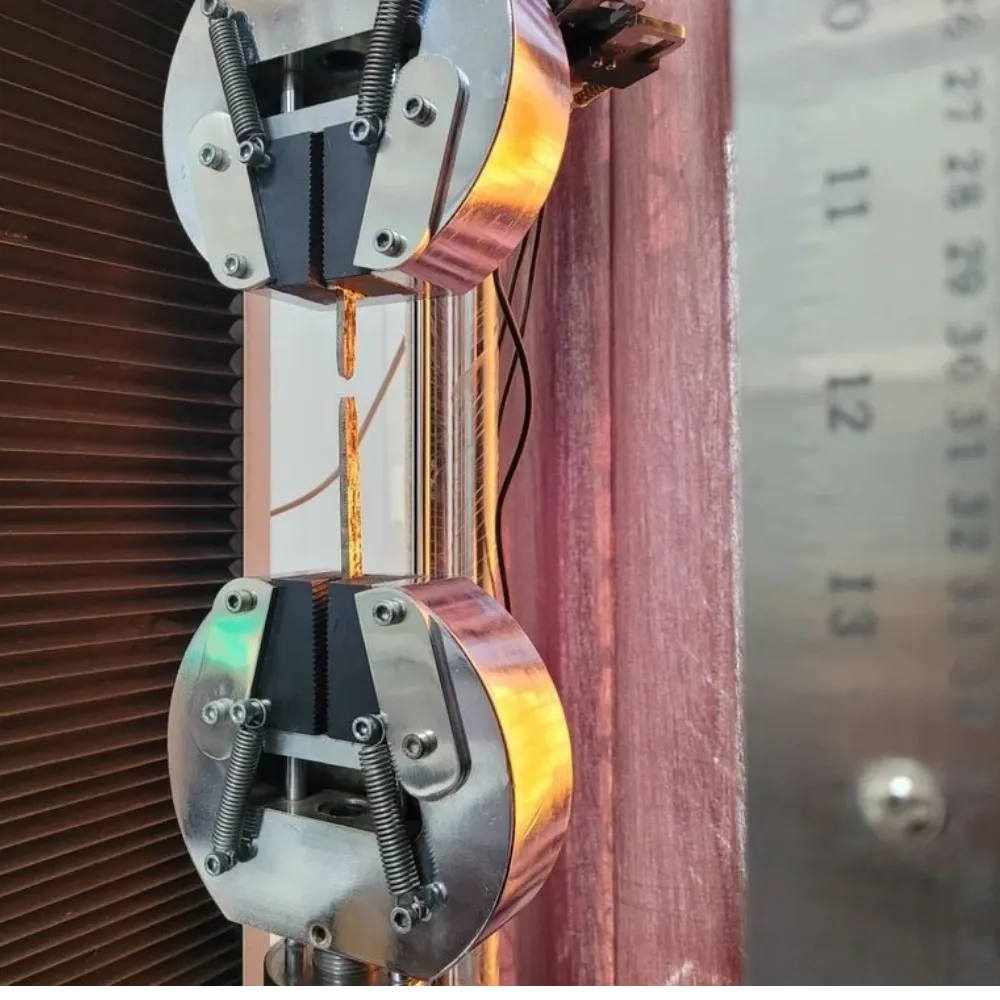

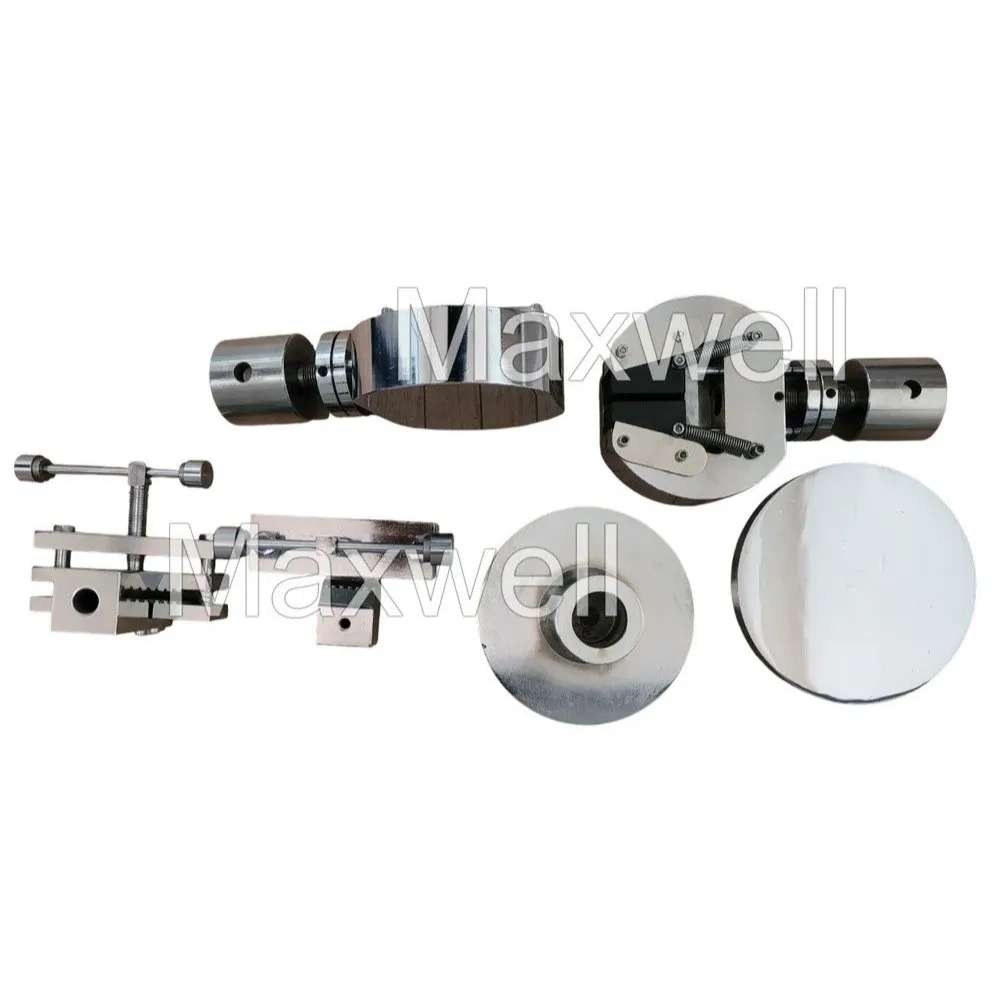

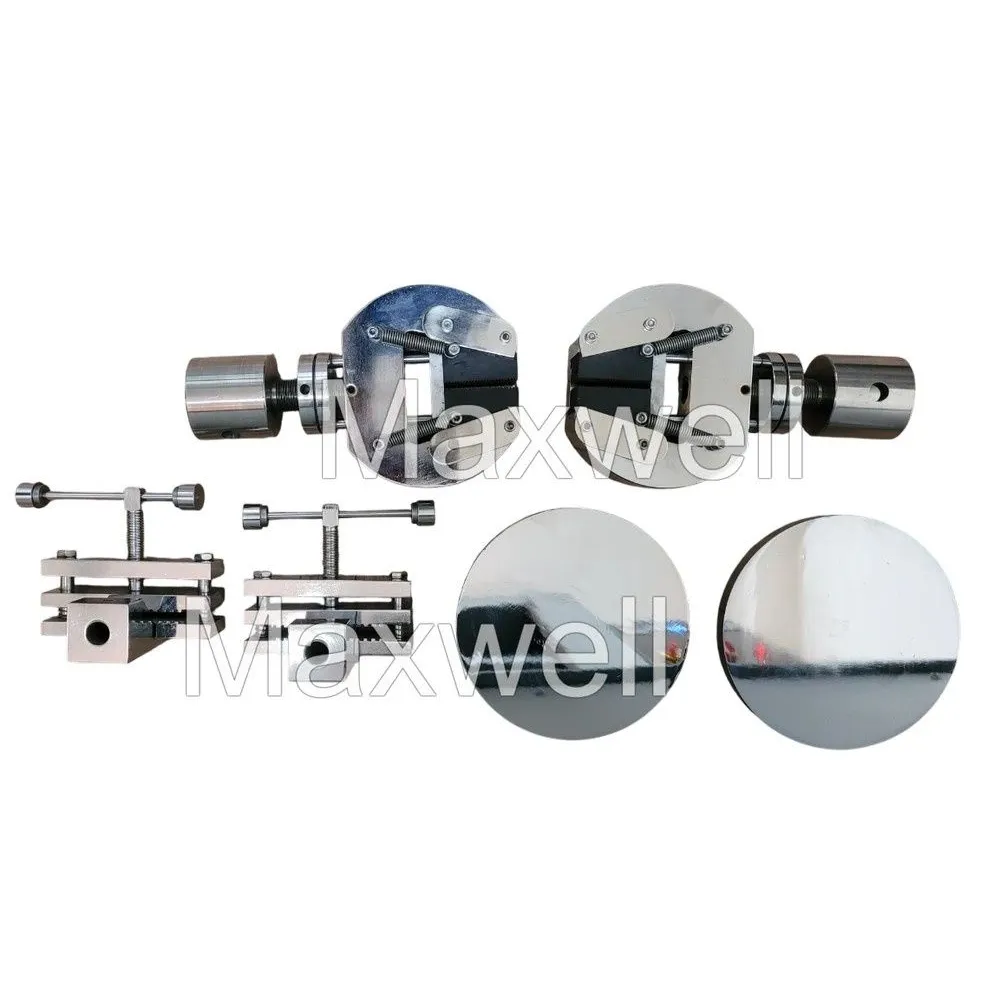

✅ Grips: Roller, Wedge, Screw type, Compression Plates. Holding for both dumbbell & Round sample Applications:
- Quality control and R&D in metal industries
- Testing of construction materials
- Academic and research laboratories
- Any environment requiring reliable mechanical property evaluation
