Description
Specifications
-
Test Type: Temperature Rise Test
-
Application: Switch & DP switch thermal performance testing
-
Ammeter Range: 0–50 A
-
Temperature Indicator: High-accuracy digital display
-
Construction: Durable wooden box for safe operation
-
Purpose: Evaluate heating under rated electrical load
-
Use Case: Safety and compliance testing in electrical QA labs
Product Description

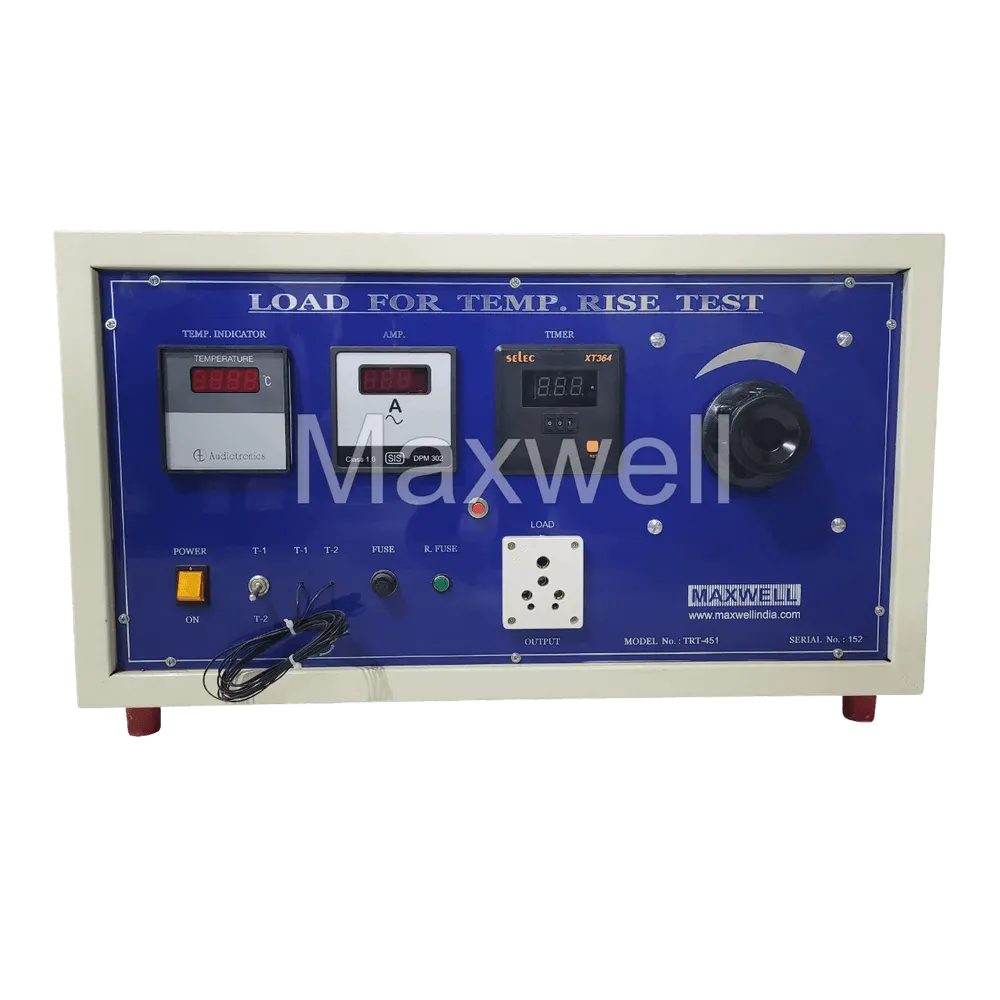

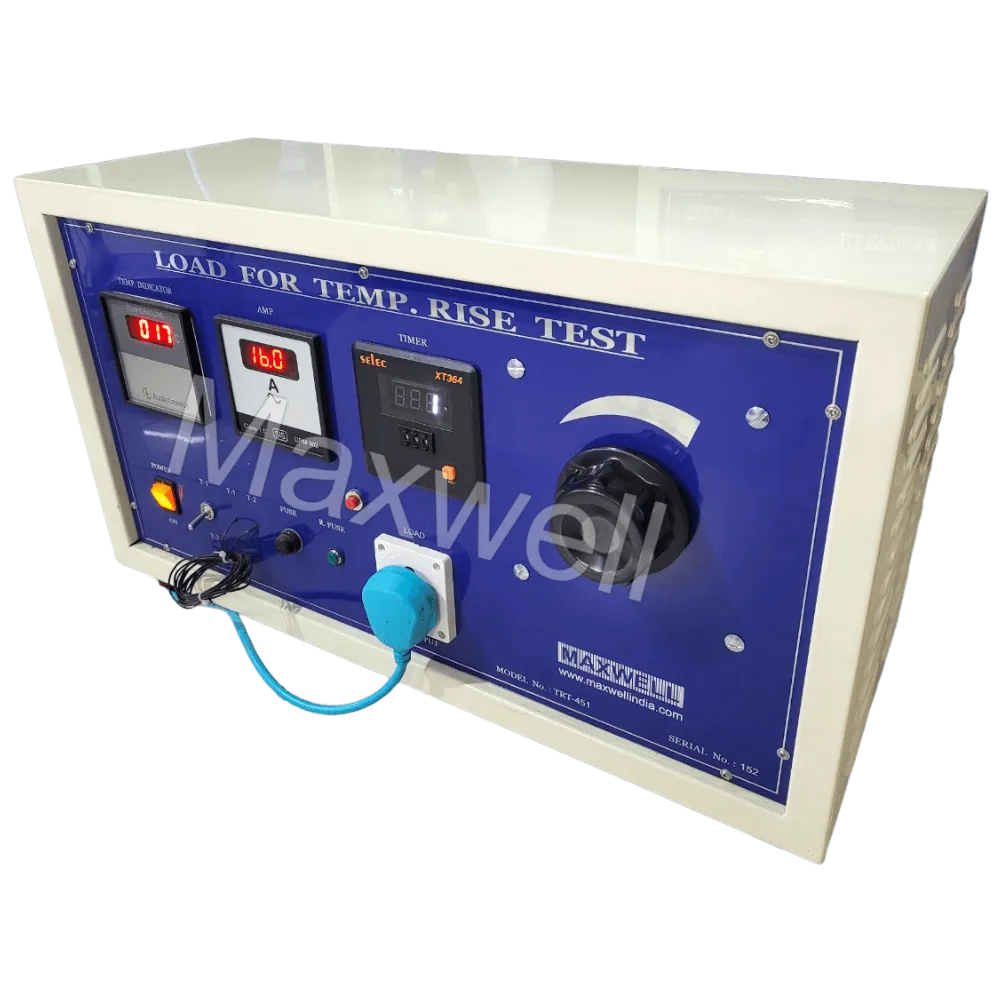

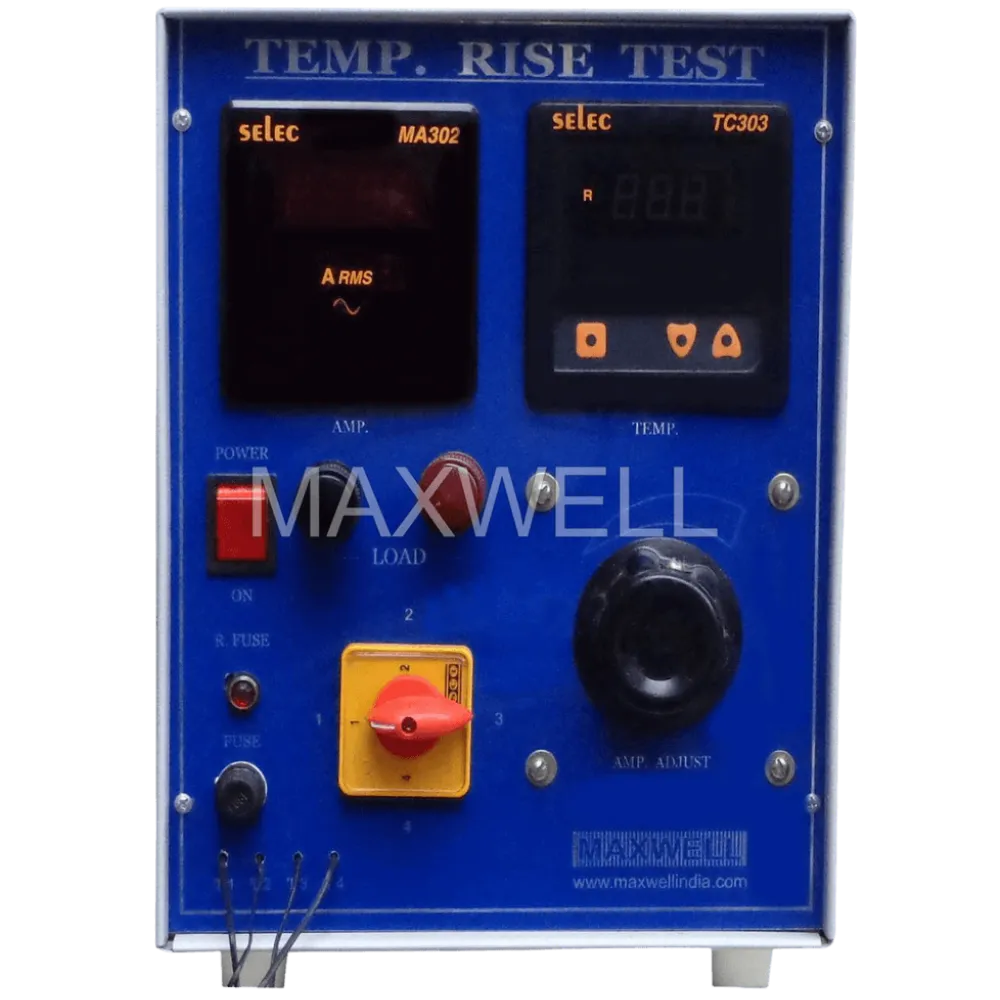

The Temperature Rise Test Apparatus is designed to evaluate the thermal behavior of electrical switches and DP switches when subjected to rated current loads as per IS 1293. This test ensures that components do not exceed safe temperature limits during operation, preventing overheating, insulation failure, and long-term performance degradation.
Equipped with a 0–50 Amp meter and a precision temperature indicator, the system provides accurate monitoring of current flow and real-time temperature changes. The setup is housed in a sturdy wooden box, ensuring insulation, safety, and ease of handling in laboratory environments.
The test is critical in assessing conformity to safety regulations, verifying that electrical control devices can operate continuously without exceeding permissible temperature levels. This makes the apparatus ideal for manufacturers, quality control labs, certification facilities, and R&D departments.
Designed for reliability and simplicity, the Temperature Rise Test Apparatus delivers consistent and repeatable measurements, helping ensure the thermal safety and performance of electrical components.
