Description
Specifications
-
Models Available: IT-1Kg (1 kg weight), IT-0.5Kg (0.5 kg weight)
-
Impact Method: Spring-type falling weight
-
Drop Height (0.5 Kg Model): 100 mm
-
Sample Support: Foam rubber pad, 40 mm thickness
-
Application: Cable testing, wire testing, material toughness evaluation
-
Operation: Pull-rod release mechanism
- Standards: IEC 61386 (1 Kg Model), ISO 6722-1:2011(E) (0.5 Kg Model), IS 1293

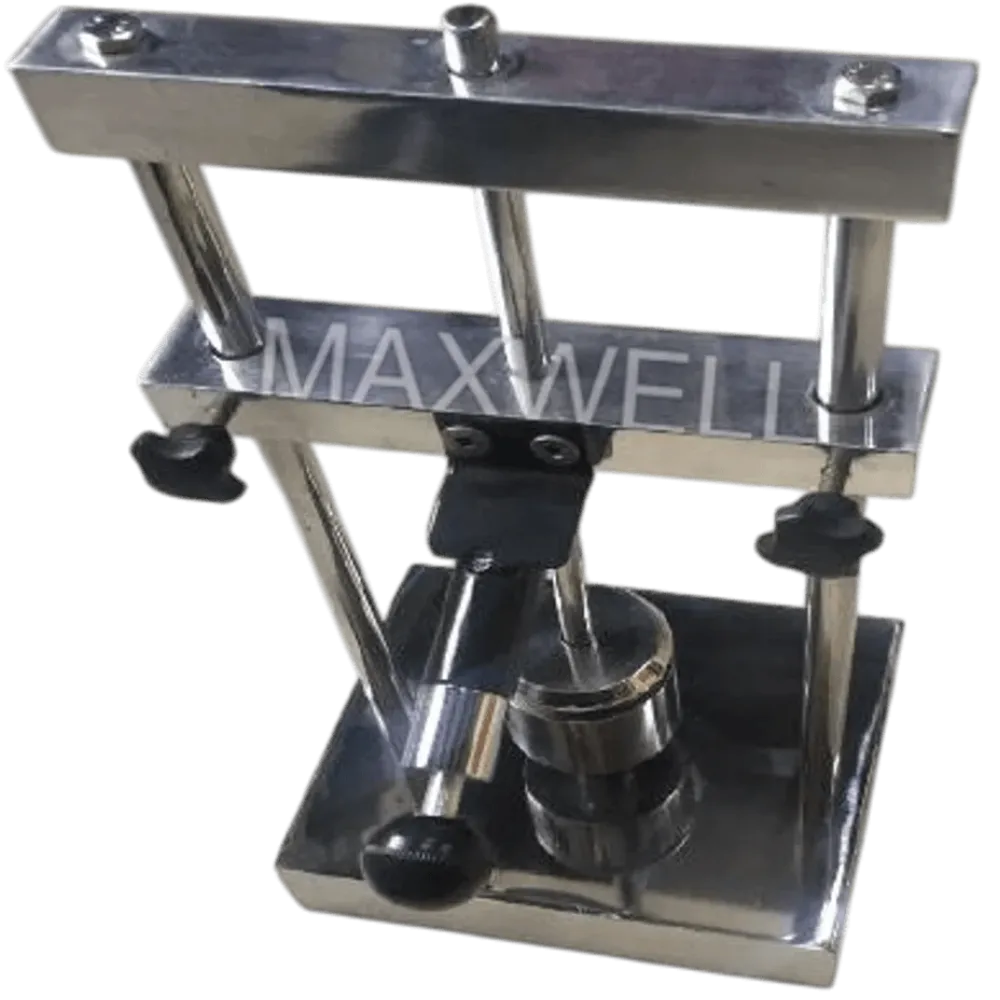

Impact Tester – Accurate Material Impact Resistance Testing
This Impact Tester is engineered for precise evaluation of material toughness, durability, and resistance to sudden mechanical impact. Designed in compliance with IEC 61386 and ISO 6722-1:2011(E) standards, it ensures reliable and repeatable testing results for a wide range of industrial applications.
The tester operates on a spring-type falling weight mechanism, where a controlled mass (1 kg or 0.5 kg, depending on the model) is released onto the sample. The impact causes deformation, and the penetration depth is analyzed to determine the material’s impact resistance.
The IT-1Kg model evaluates samples by dropping a 1 kg weight, while the IT-0.5Kg model drops a 0.5 kg weight from 100 mm height. The sample is placed on a 40 mm thick foam rubber pad, ensuring consistent impact absorption and test accuracy.
This instrument is widely used in quality control laboratories for cables, wires, insulation materials, polymers, and other components where resilience to sudden force is crucial.
Key Features
-
Complies with international impact test standards
-
Simple pull-rod mechanism for consistent impact release
-
Highly durable and easy to operate
-
Suitable for cable, wire, insulation, and material testing
-
Provides fast and accurate impact penetration evaluation
