Description
Specifications
- Model: FT-450
-
Standard Compliance: IS 1293:2019 (Indian Standard for plugs & socket-outlets)
-
Flexing Speed: 60 cycles/minute
-
Plug Type: 2 Pin or 3 Pin
- Flexing Angle: 60 Degree (30+30), 90 Degree (45+45), 120 Degree (60+60) {Any 1 angle setup in 1 instrument}
-
Sensor Type: In-built proximity sensor for count controller
- Meters Available: Digital AC Voltmeter, Ammeter and 6-digit Count Controller
-
Electrical Load: Resistive Load of 2.5 A, 6A, 10A & 16A rated @250VAC 50Hz
- Meters Available: Digital AC Voltmeter, Ammeter and Count Controller
-
Number of samples: One sample at a time
- Power Supply: 230V AC, 50 Hz
-
Country of Origin: India

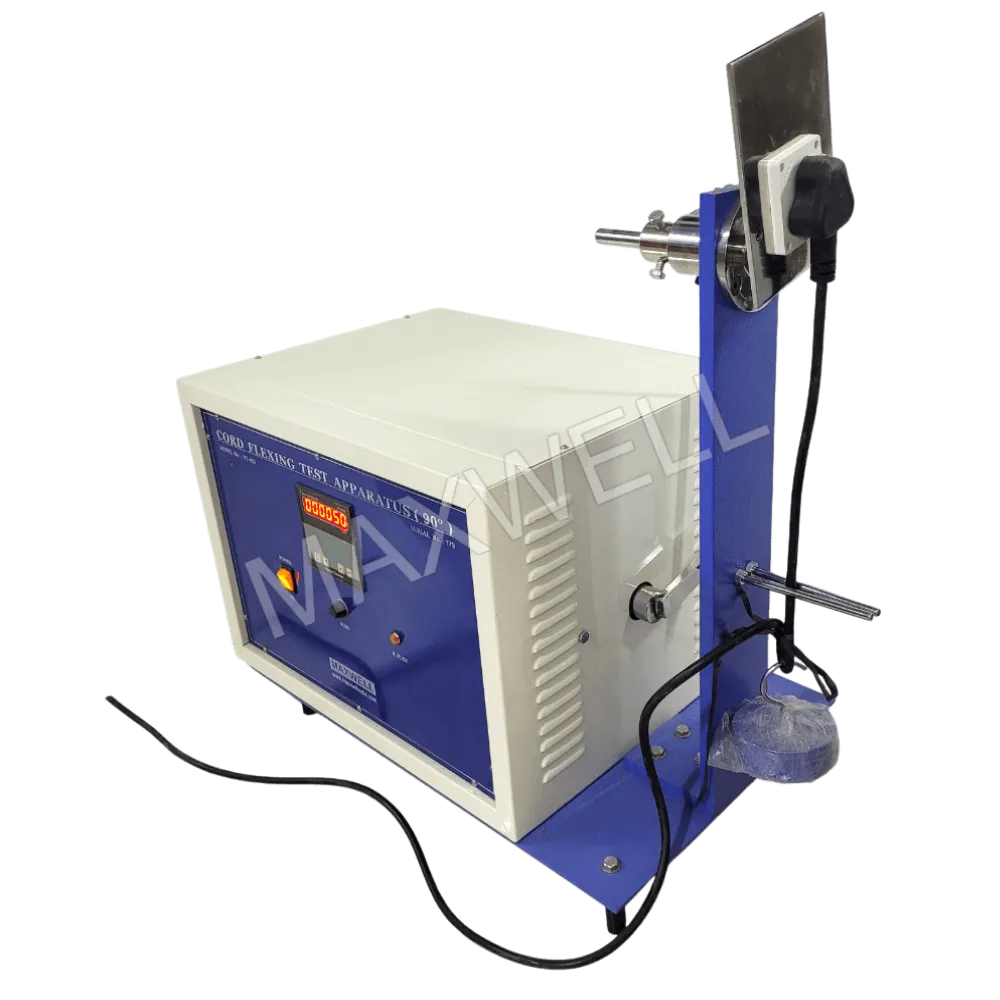

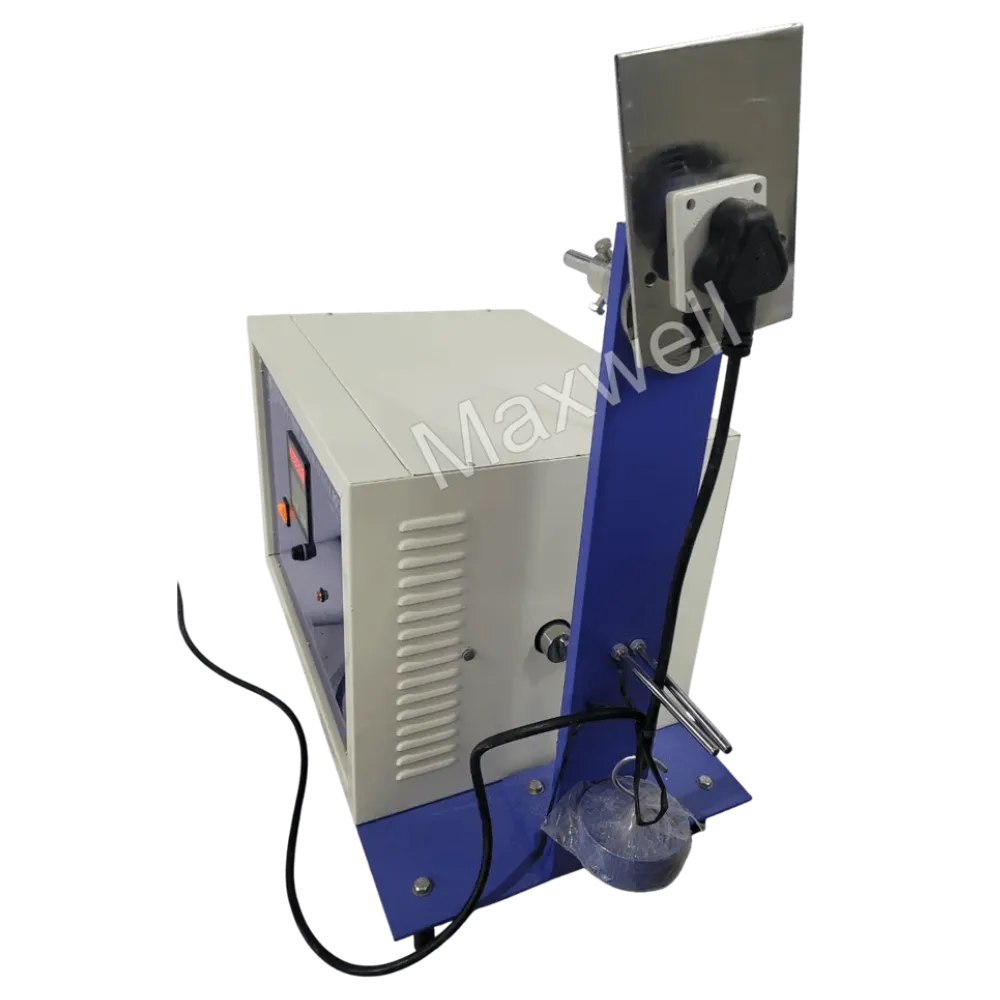

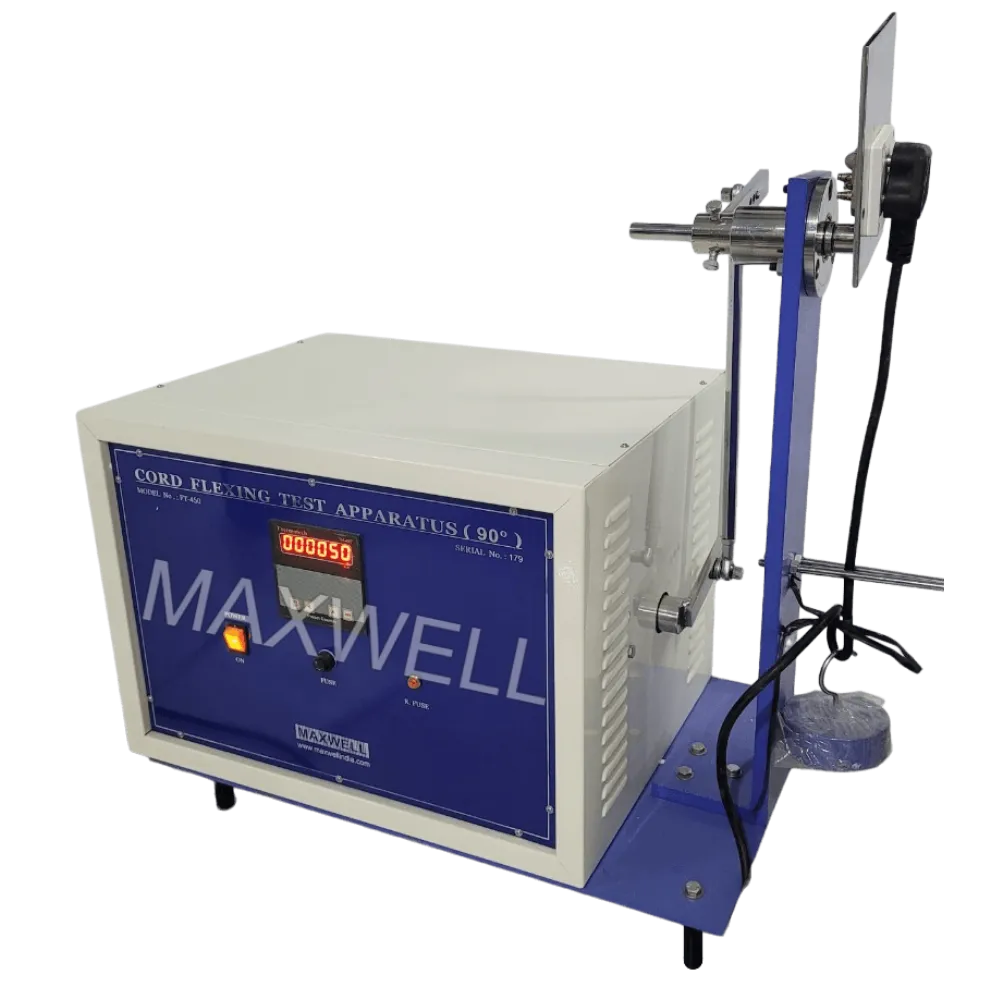

Cord Flexing Test Apparatus IS 1293 (FT-450) – Flex Durability Testing for Electrical Cords
The Cord Flexing Test Apparatus IS 1293 (FT-450) is a precision testing machine designed to evaluate the mechanical endurance, bending strength, and durability of flexible electrical cords. It ensures that cords used in plugs, socket-outlets, appliances, and household equipment meet the safety and performance requirements specified in IS 1293 standards.
Engineered for reliability and consistent performance, this apparatus delivers 60 flexing cycles per minute to simulate real-world mechanical stress. The integrated proximity sensor provides accurate cycle detection and smooth operation throughout the flexing test. Any one angle can be selected per instrument and has to be communicated before finalizing the product. Available angles: 60 Degree (30+30), 90 Degree (45+45), 120 Degree (60+60)

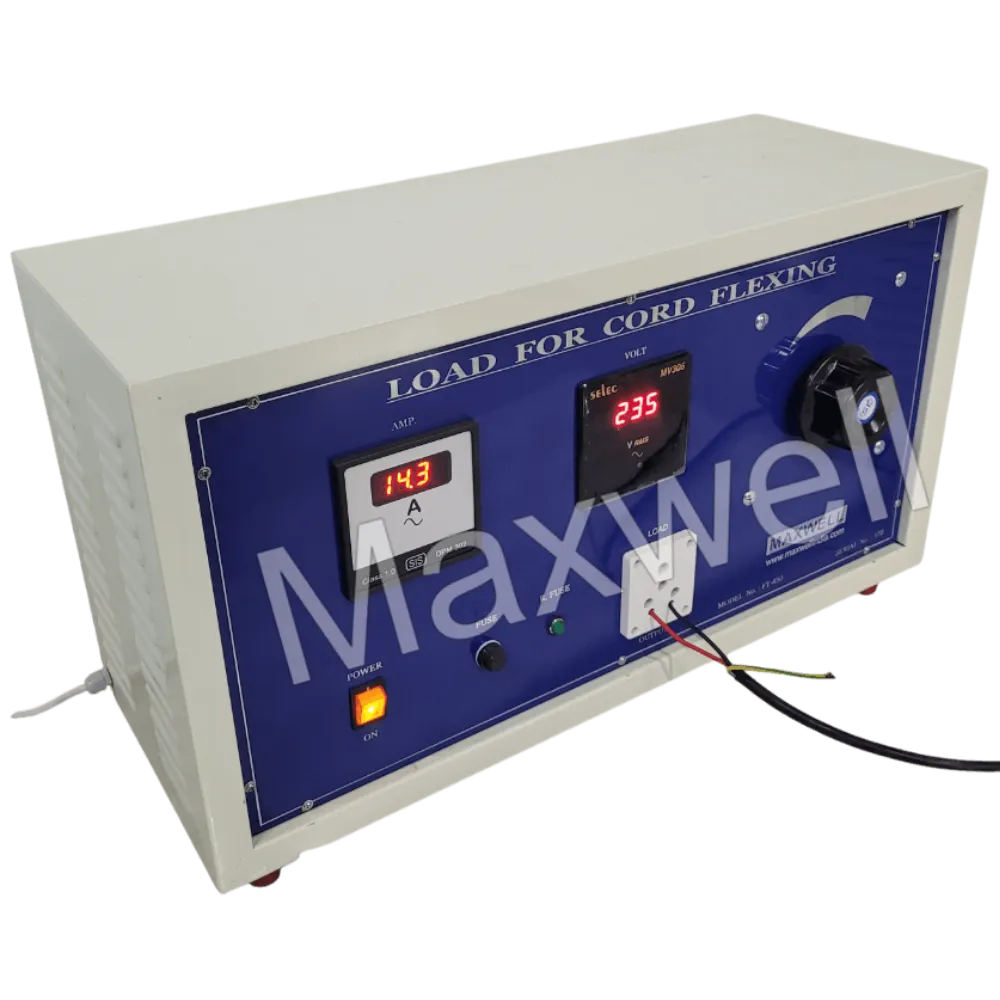

Separate Electrical Load Panel is provided along with the instrument for better heat dissipation. Resistive load can be changed via variac and it is set up to the required ampere value as per the IS standard @250VAC.
Ideal for testing laboratories, electrical manufacturers, certification bodies, and R&D facilities, this machine ensures that flexible cords are compliant, durable, and safe for long-term use. Sturdy construction for continuous testing.
Suitable for quality checks in manufacturing and laboratory environments.
Applications
-
Testing of electrical plugs, sockets & cord sets
-
Flex endurance testing for appliance wires
-
Quality control in electrical manufacturing units
-
Laboratory & certification agency testing
-
R&D evaluation of cable designs
Ensure compliance, durability, and user safety with the Cord Flexing Test Apparatus FT-450, a dependable machine built to meet stringent IS 1293 testing requirements.
