Description
Technical Specifications
-
Voltage Range: up to 600 V AC
-
Operating Frequency: 45–65 Hz
-
Electrode Force: 1 N (two electrodes)
- Electrode Material (as per requirement):
- Platinum Electrodes as per ASTM D3638. It is technically equivalent to IEC 60112.
- Electrolytic Copper electrodes with a purity typically ~99.9% as per ASTM D5288
-
Electrode Angle: 30°
-
Current Range: 0–5 A
-
Least Count: 0.1 A
-
Test Type: Comparative Tracking Index (CTI) determination
-
Application: Electrical insulation testing
- Standards Compliance: IEC 60112, ASTM D3638, ASTM D5288, IS 13252 & IS 16242
Product Description

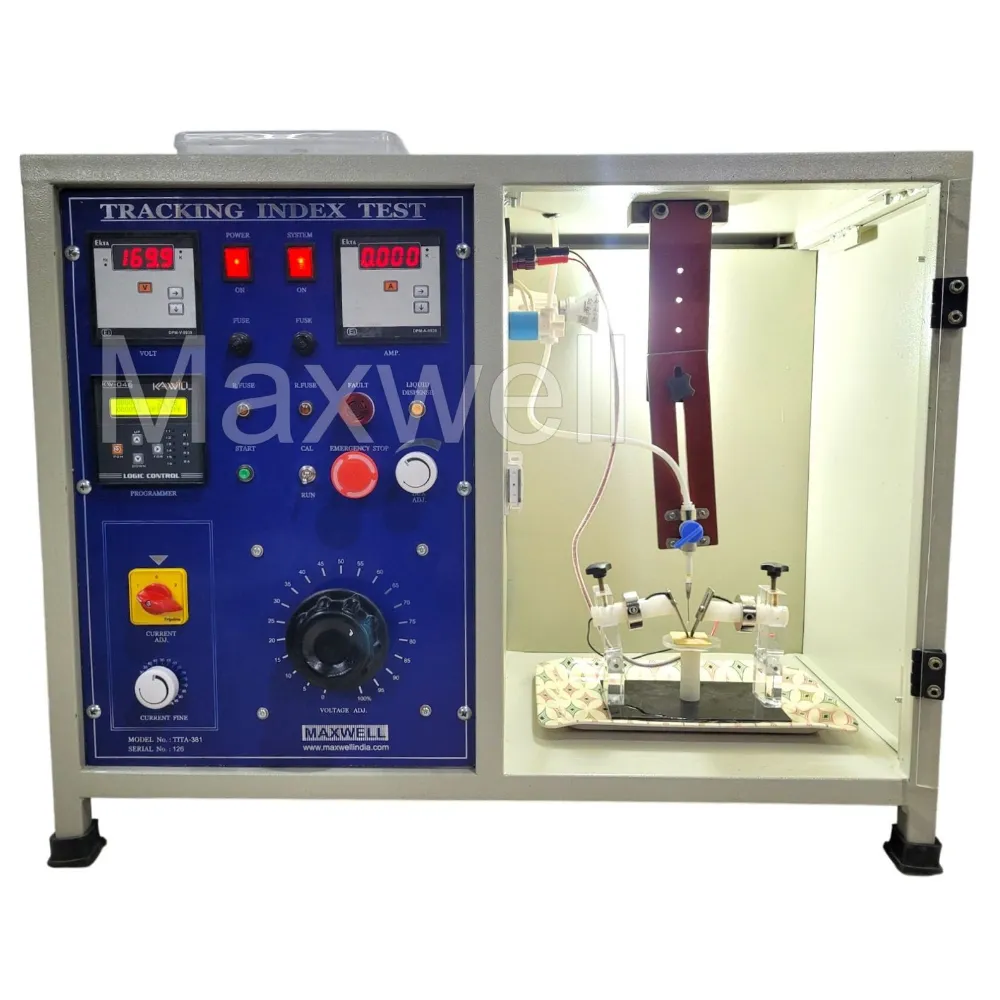

The Tracking Index Test Apparatus is a precision instrument used to evaluate the resistance of insulating materials to electrical tracking caused by the combined effects of high voltage and moisture contamination. Electrical tracking can lead to surface carbonization, insulation failure, and safety hazards; therefore, CTI testing is essential for certifying the reliability of insulating materials used in electrical products and components.
Designed to meet IEC / TEC 60112, ASTM D3638 & ASTM D5288 standards, this apparatus ensures accurate, repeatable, and safe testing for quality control laboratories, certification bodies, R&D facilities, and manufacturing units.
The unit provides an adjustable up to 600 V AC output monitored via an integrated voltmeter for precise voltage application. A dual-electrode assembly applies a controlled 1-newton force at a standardized 30-degree angle onto the specimen, enabling consistent droplet contact and uniform surface tracking assessment in compliance with test standards.
Leakage current is continuously monitored using a 0–5 A ammeter with 0.1 A least count, allowing precise detection of tracking failure conditions or surface breakdown during testing.
Built with a rigid laboratory-grade enclosure and user-friendly controls, the apparatus offers durability, operator safety, and reliable long-term operation in demanding test environments.
Key Features
✅ Fully compliant with IEC 60112, ASTM D3638, ASTM D5288, IS 13252 & IS 16242
✅ Adjustable 0–600V AC test voltage with built-in voltmeter
✅ Dual electrodes with 1N force application
✅ Standard 30° electrode angle for accurate CTI testing
✅ 0–5A current measurement (0.1A least count)
✅ Robust design for continuous laboratory use
✅ Simple operation with enhanced safety controls
Applications
-
Electrical insulation performance evaluation
-
Comparative Tracking Index (CTI) testing of materials
-
Quality control in switchgear, cables, plugs, connectors, and insulating plastics
-
Research & development laboratories
-
Compliance testing and certification agencies
Tracking Index Test Machine is a popular product for checking compliance of solid insulating material as per IEC 60112, UL 746A, ASTM D3638 and DIN 53480 also
