Ageing Oven

Precision 4-chamber ageing oven for cable and polymer testing with independent temperature control, forced air circulation, and compliance with IEC and IS standards.

Category:

Description

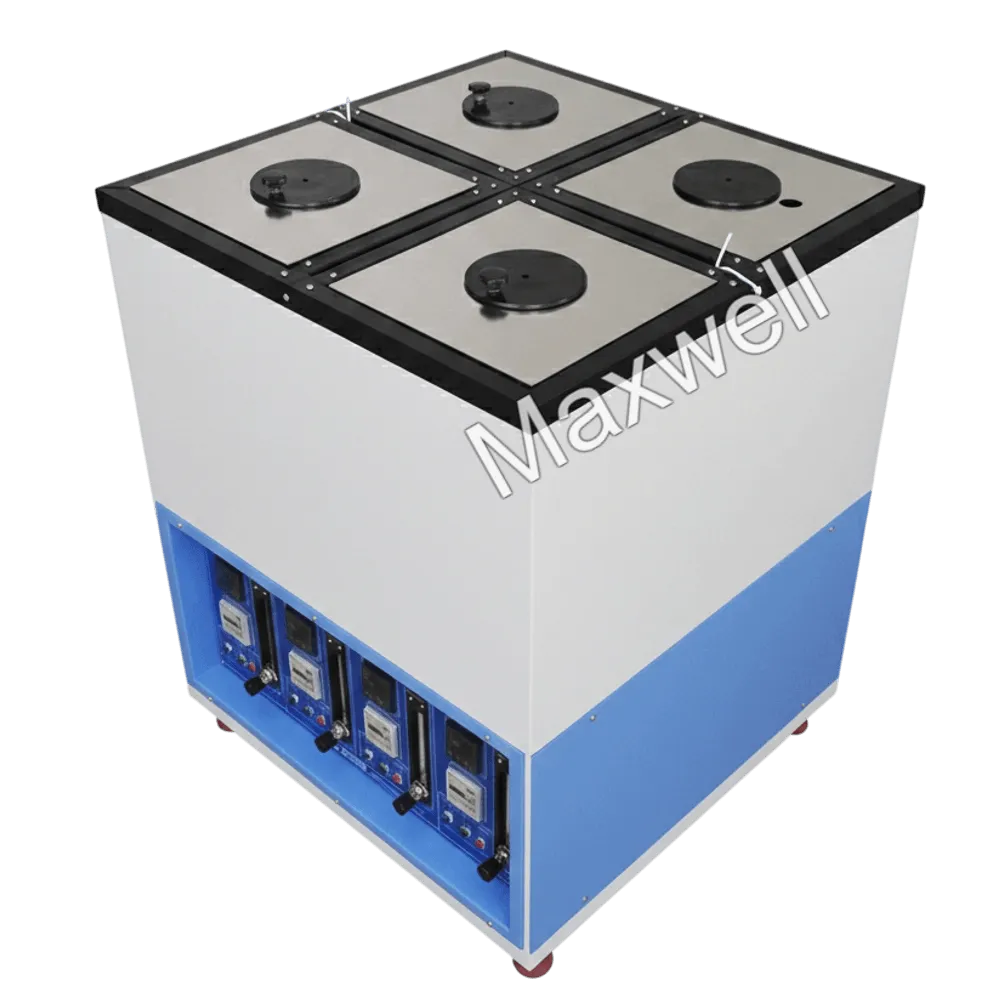

Ageing Oven – 4 Chamber (Independent Air Circulation Type)

A precision ageing oven designed for accelerated thermal ageing of cable, wire, rubber, and polymer samples. The system features four independent chambers, each with individual temperature control and air circulation monitoring for accurate and uniform ageing tests as per relevant IEC/IS standards.

Key Features

  • 4 independent ageing chambers

  • Individual digital temperature controllers

  • Independent airflow control with rotameters

  • High temperature uniformity

  • Stainless steel inner chambers

  • Suitable for cable & polymer ageing tests

  • Heavy duty industrial construction

  • Easy maintenance and calibration

Technical Specifications

Chambers

  • Number of chambers: 4

  • Chamber type: Independent

  • Inner chamber material: Stainless steel (SS 304)

  • Outer body: Powder coated mild steel

  • Insulation: High density mineral wool

Temperature

  • Temperature range: Up to 150°C
    (customizable up to 250°C if required)

  • Temperature accuracy: ±0.5°C

  • Temperature uniformity: ±1°C

  • Controller: Digital PID controller (each chamber)

  • Sensor: PT-100

Air Circulation & Ventilation

  • Forced air circulation system

  • Independent airflow control per chamber providing 8–20 air changes/hour (customizable as required)

  • Rotameter provided for airflow monitoring

  • Air exchange rate adjustable

Heating System

  • Heater type: Tubular/SS heaters

  • Independent heaters per chamber

  • Over-temperature safety cut-off

Control Panel

  • Individual temperature display & control

  • Main power switch

  • MCB protection

  • Indicator lamps

  • Separate control for each chamber

Power Supply

  • Supply: 230V AC / 50Hz (single phase)
    (or 415V three phase optional)

  • Power consumption: Approx. 3–6 kW (depending on model)

Safety Features

  • Over-temperature protection

  • Proper earthing

  • Insulated outer body

  • Air circulation safety design

Mounting

  • Floor standing model

  • Castor wheels for mobility

Standards Compliance

Suitable for ageing tests as per:

  • IS 10810 (Part 1 & relevant parts)

  • IEC 60811

  • ASTM 5423, UL 2556

Applications

  • Cable insulation ageing

  • Wire & cable testing labs

  • Rubber & polymer testing

  • Quality control laboratories

  • R&D centers

Optional Features

  • Data logger

  • Timer with alarm

  • SS 316 chamber

  • Higher temperature range

  • Touch screen controller

  • Calibration port
