Description
Specifications
-

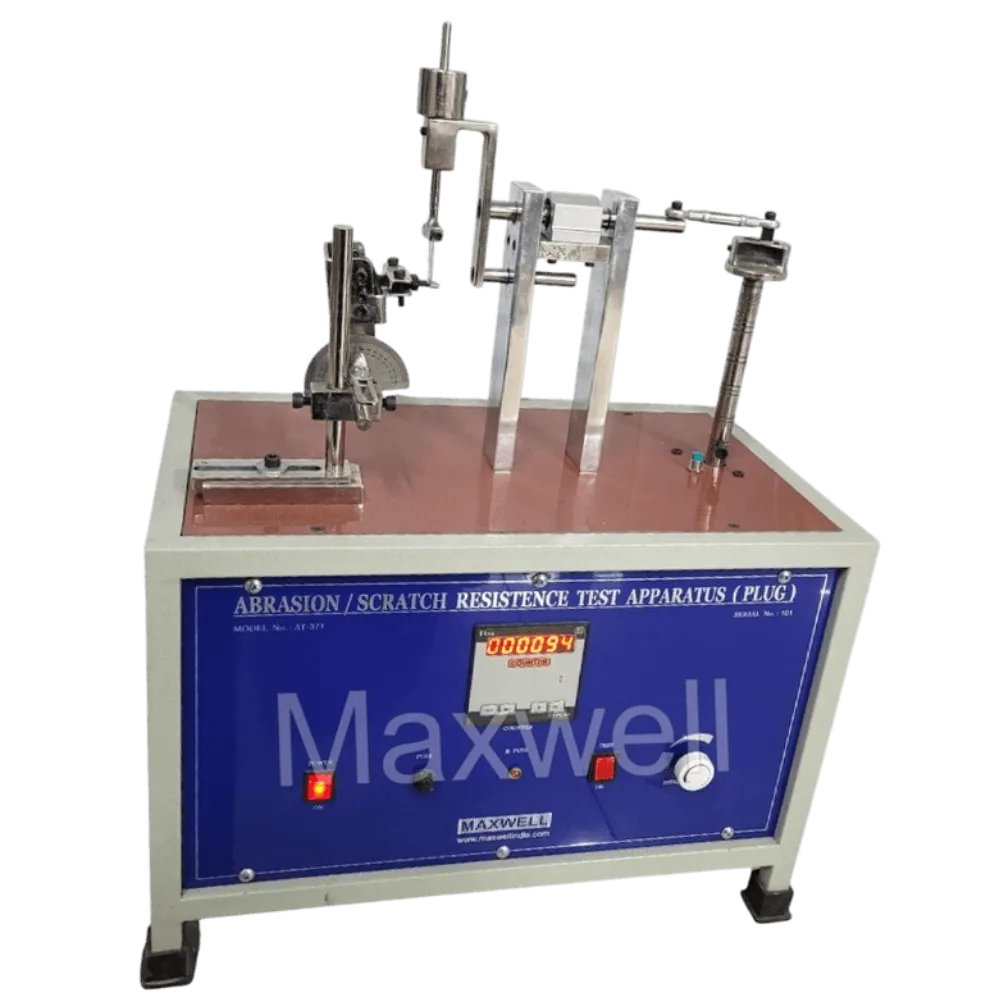

Product Name: Abrasion / Scratch Resistance Test Apparatus (Plug)
-
Standard Compliance: IS 1293
-
Application: Abrasion and scratch resistance testing of plug surfaces
-
Test Samples: 2-pin and 3-pin plugs / tops
-
Operation: Motorized
-
Control System: Digital count controller (video counter)
-
Test Method: Repeated abrasion action on pin sleeve surface
-
Measurement: Automatic cycle counting
-
Purpose: Durability and wear resistance evaluation
-
Display: Digital cycle display
-
Construction: Rigid metal frame with stable mounting fixture
-
Power Supply: 220 V AC, 50 Hz
Product Overview
The Abrasion / Scratch Resistance Test Apparatus (Plug) – IS 1293 is a precision testing instrument designed to assess the durability of electrical plug surfaces by subjecting them to controlled abrasion cycles. This test verifies the resistance of insulating and sleeved pin surfaces against wear and scratching, ensuring compliance with Indian Standard IS 1293 for safety and quality requirements.
The apparatus features a motorized operating mechanism coupled with a digital count controller that accurately records the number of abrasion cycles performed during testing. It is suitable for both 2-pin and 3-pin plugs, making it an ideal solution for manufacturers, laboratories, and quality inspection agencies involved in plug and socket testing.
The rugged construction provides stable specimen holding and uniform test force, ensuring repeatable and reliable results. The automated cycle counting minimizes manual errors and enhances testing efficiency. This instrument plays a critical role in ensuring that plug products maintain their protective surface integrity even under prolonged usage conditions.
Key Features & Benefits
-
Fully compliant with IS 1293 testing requirements
-
Motorized abrasion operation for uniform and consistent testing
-
Digital cycle counter for precise monitoring and reporting
-
Supports 2-pin and 3-pin plug tops
-
Durable construction for long-term laboratory use
-
Ensures verification of surface wear and scratch resistance
-
Improves product safety, reliability, and quality control
Applications
-
Quality testing of electrical plugs and plug tops
-
Compliance verification to IS 1293 standards
-
R&D durability testing
-
Electrical safety certification laboratories
-
Manufacturing quality assurance departments
